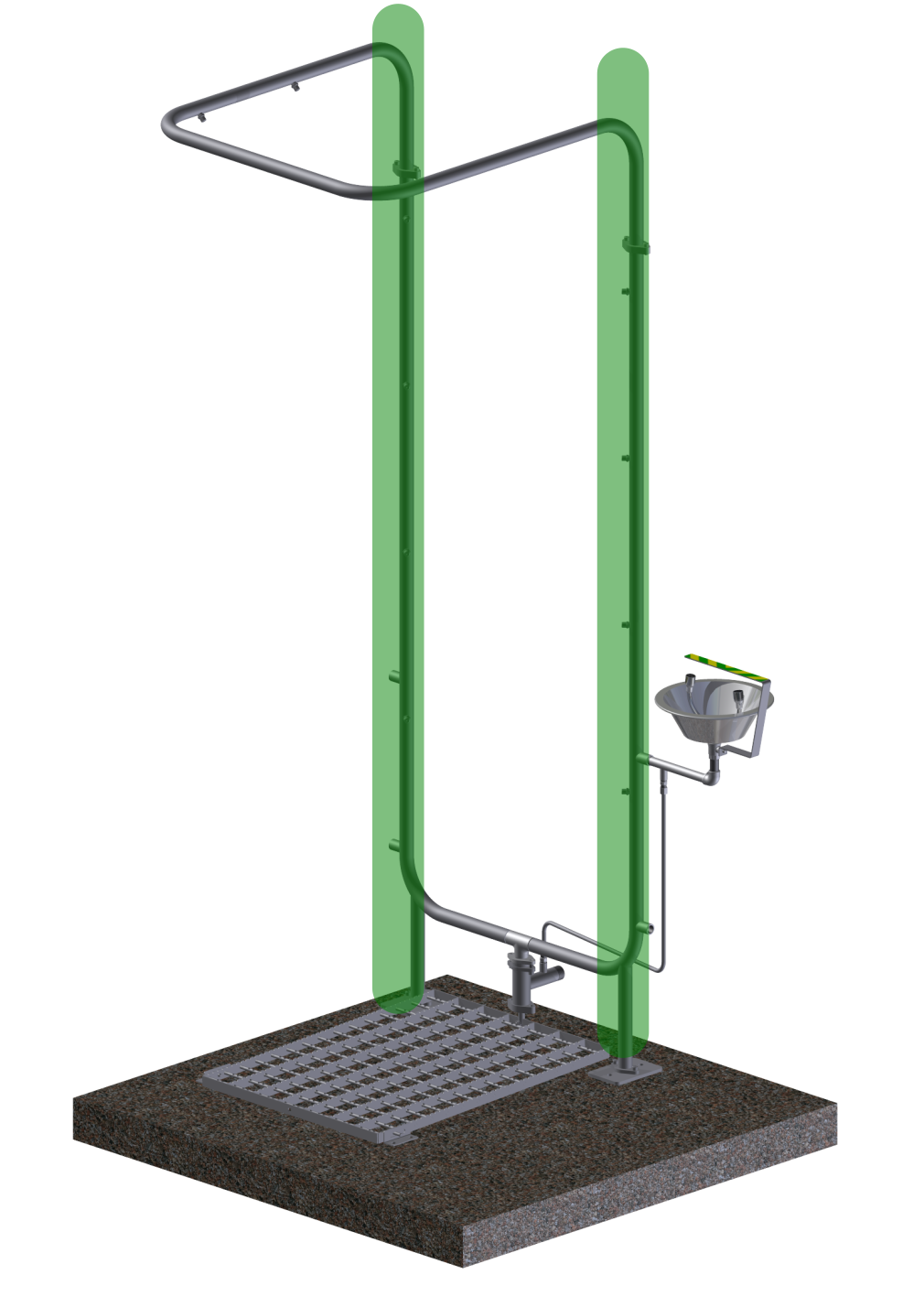

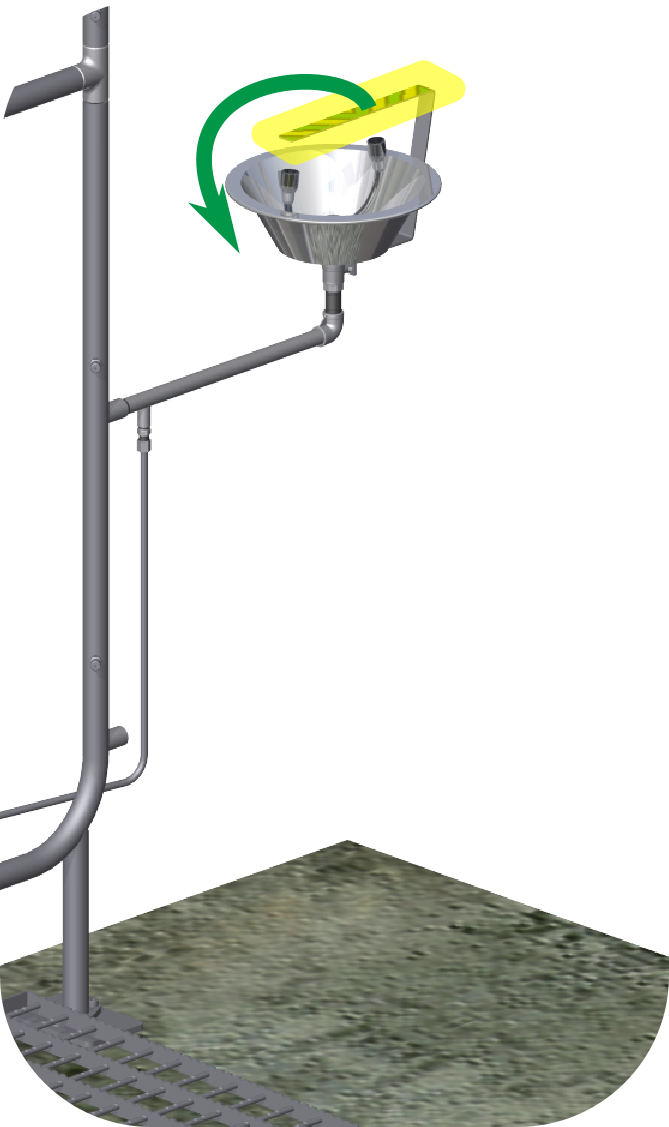

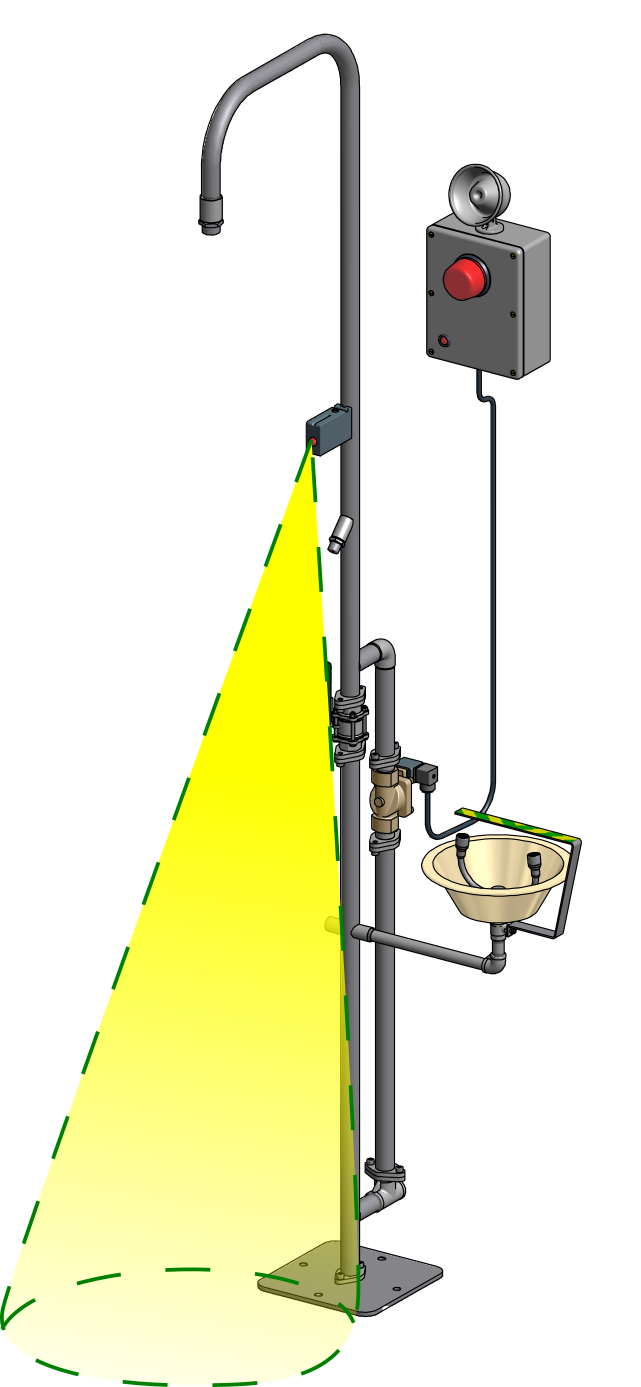

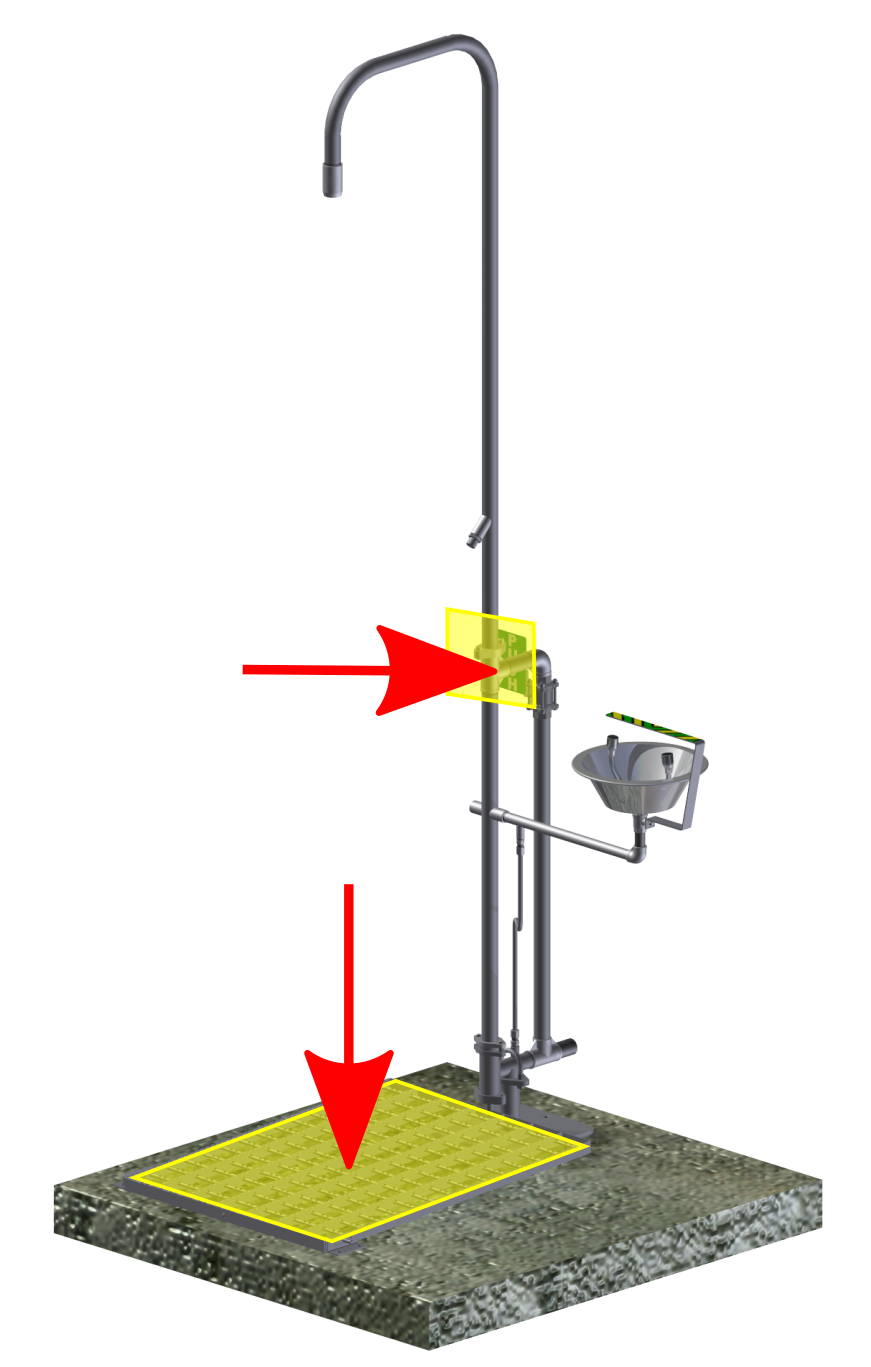

The SPRAYDRENCH® range of safety showers can be broken up by: Shower Operation Family, Type/Number of Columns, Material of Construction, and Eyewash Operation. In general, these can be used to build the correct model number. Within each of these groupings there are number of specialisations and custom adaptations available.
Our team is always prepared to assist with unique request. Please contact us for further information.
A. Shower shall provide 75.7 litres of water per minute for 15 minutes.
B. Shower head shall be between 2080 mm and 2500 mm above the floor.
C. At 1580 mm above the floor the water pattern must be at least 508 mm in diameter.
D. Valve actuator shall be easy to locate and readily accessible to user.
E. Easily located, accessible actuator no higher than 1730 cm above the floor.
F. “Hands-free” stay-open valve activates in one second or less.
G. Outlet heads should be positioned between 840 cm.
H. Unit must deliver at least 11.4 litres (for eye/face wash) or 1.5 litres (for eye wash) for 15 minutes.
I. Protect outlet heads from airborne contaminants.
J. Connect unit to uninterruptible water supply delivering required flow
when all components are operated simultaneously.
Identify safety station with highly visible sign. Area around unit shall be well-lit.
Water delivered to safety station shall be tepid. (lukewarm)
Install safety station within 10 seconds of hazard, on the same level as hazard and with unobstructed travel path.
Activate the safety station at least weekly. Inspect annually for compliance with standard.
Instruct all employees in the location and proper use of the safety stations.

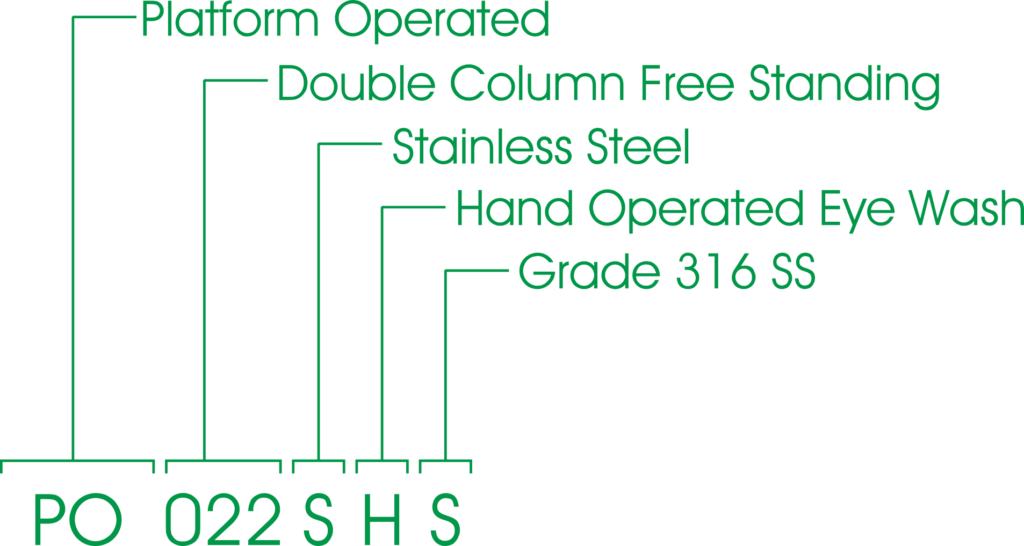

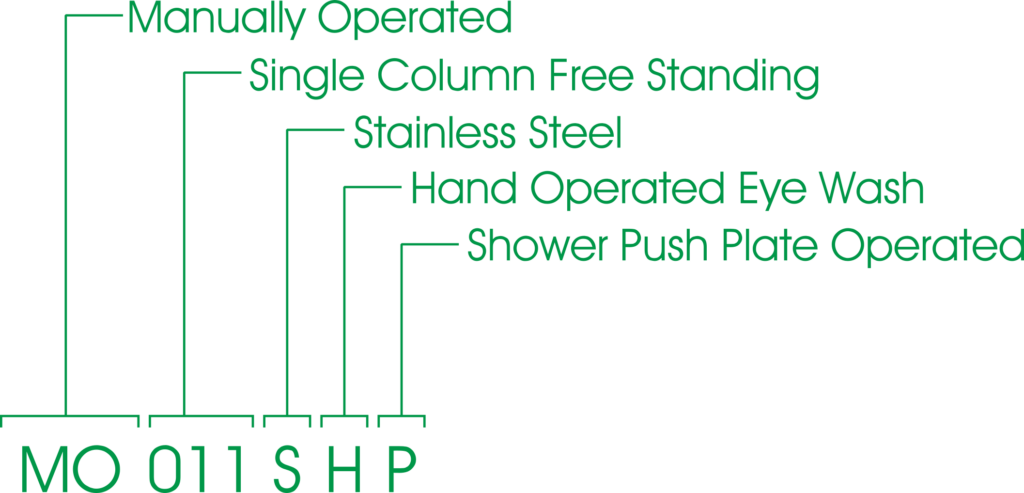

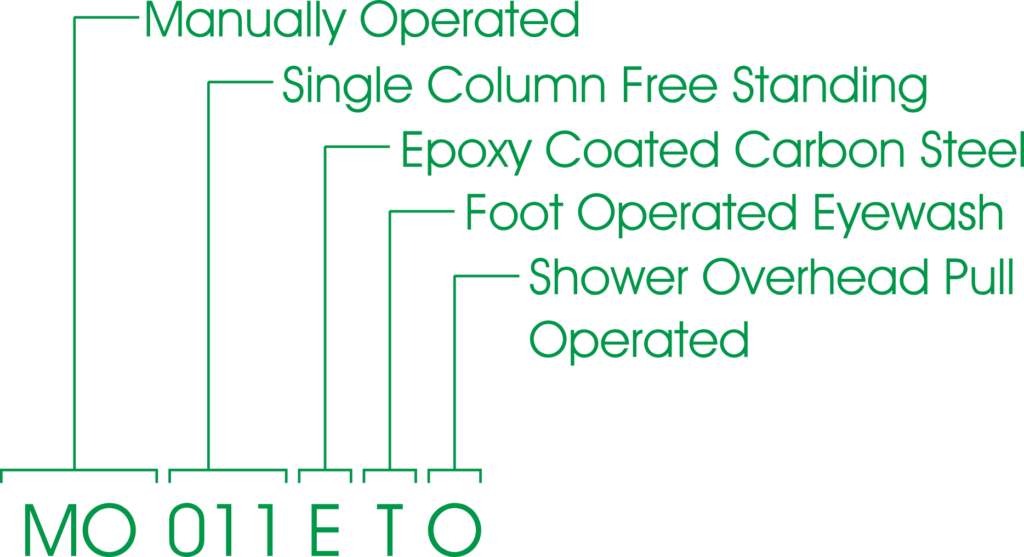

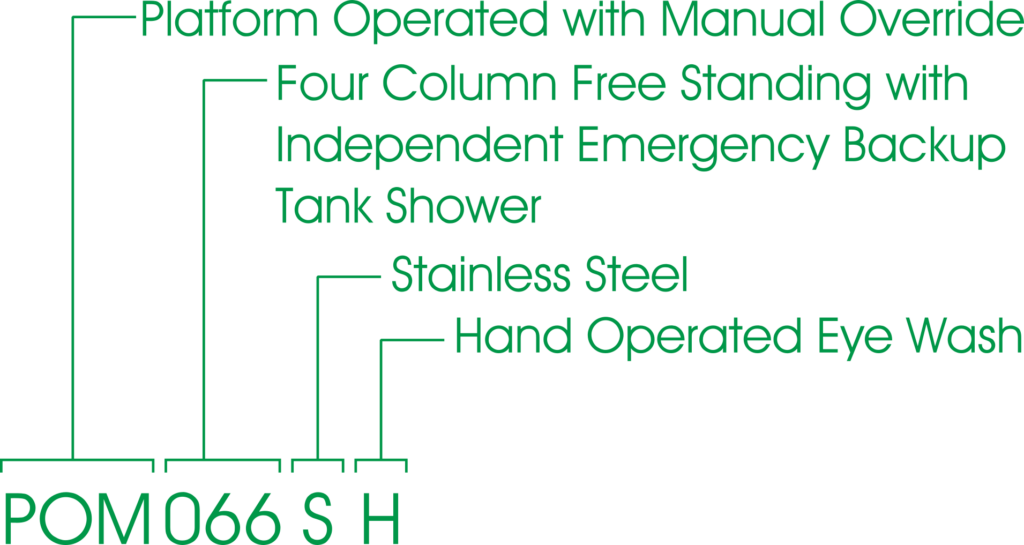

The above code parts can be used to build the correct model number. Below are some typical shower code examples:

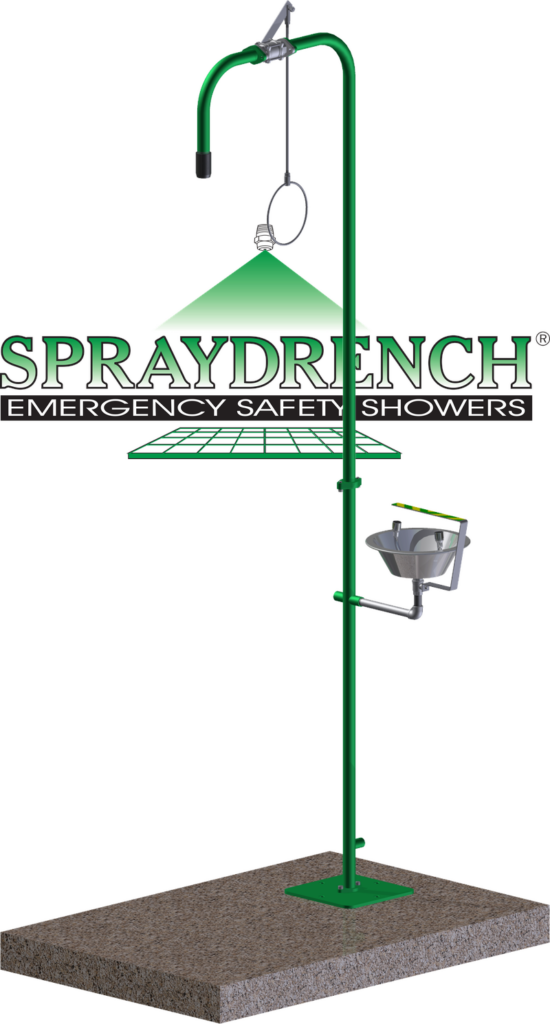

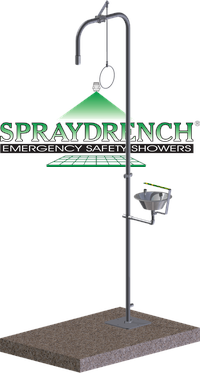

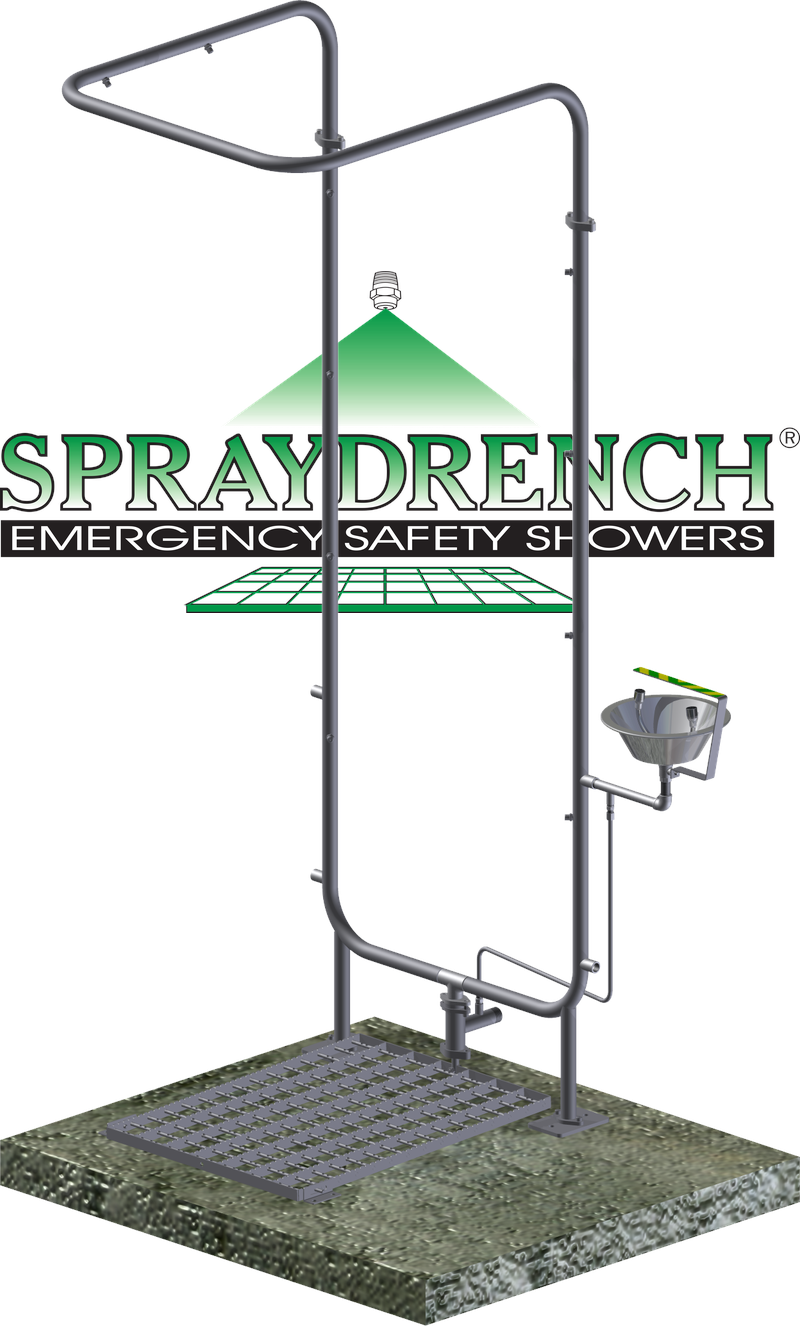

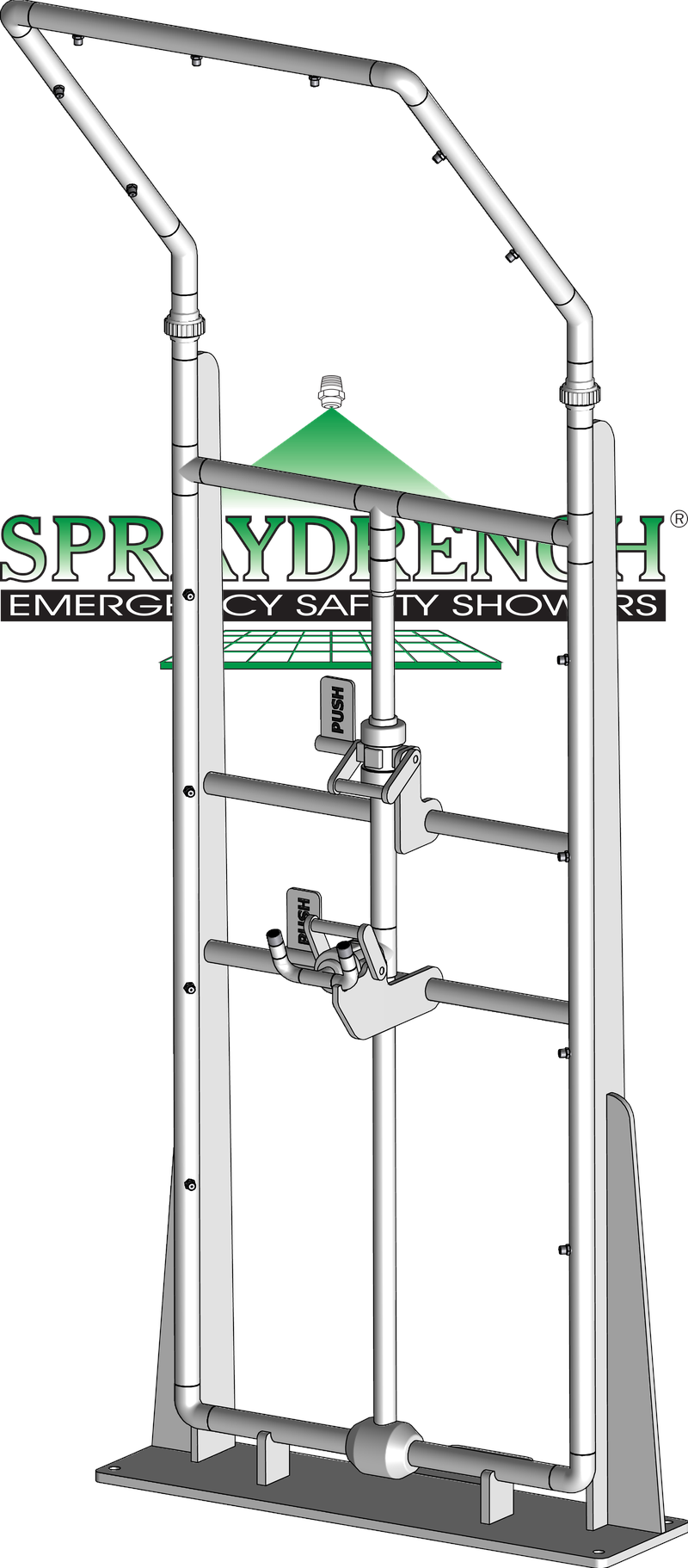

SPRAYDRENCH® Safety Showers are ideal for use in industry, mines and laboratories. They are durable, easy to install and require low maintenance. If safety comes first for your business, the SPRAYDRENCH® range will help you put that philosophy into practice efficiently and with confidence.
A Comprehensive Range
SPRAYDRENCH® Emergency Safety Showers are designed to fulfil the safety requirements of modern production processes to meet safety standards. With variants in operation, material and eyewash configurations, the right shower can be found for you.
We are always willing to assist with custom request and pride ourselves in our flexibility to meet client needs.
